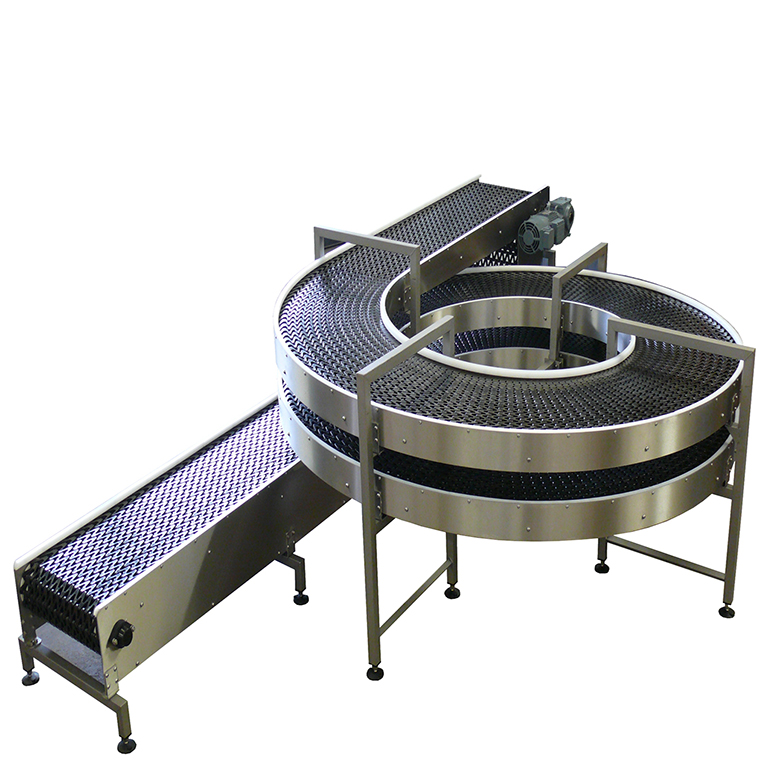

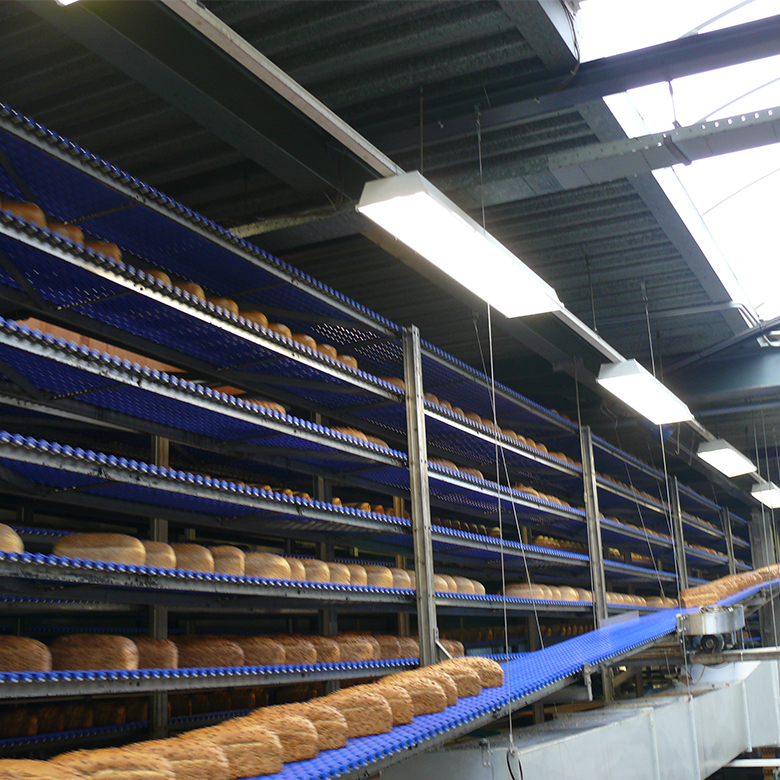

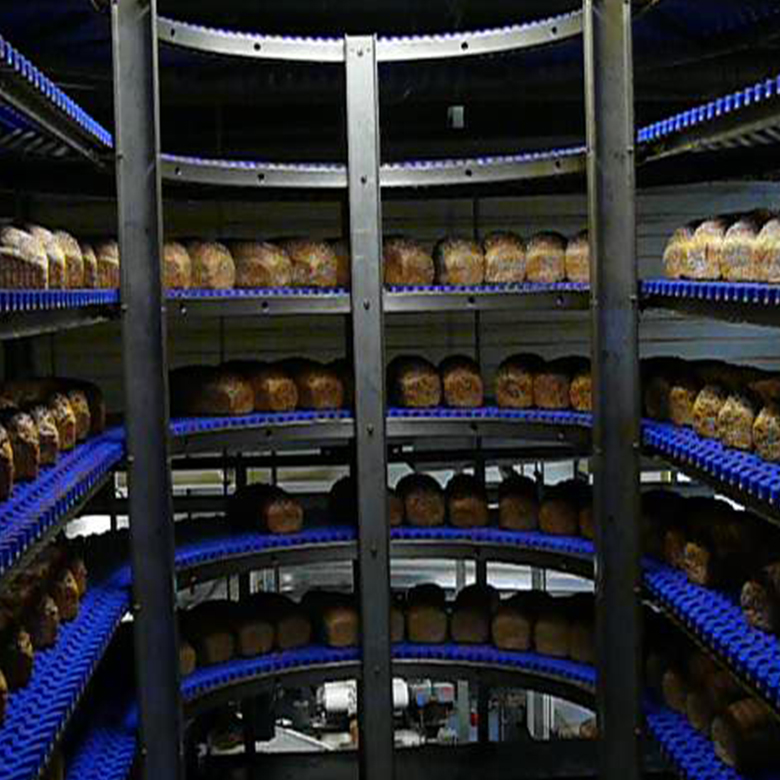

Long, horizontal, upward or downward, multiple curves, oval spirals: JP Link takes them smoothly and reliably with minimal or no transfers. Damage to, packaged or unpackaged products is prevented. In addition, the JP Link system replaces a trouble-free multi-driven transport units and expencive curveconveyors The belt with a hygienic design is driven in an efficient manner on the side so the force is reduced to zero. This makes the JP Link a strong conveyor and we can offer the JP Link with extra-long belt length.
– Hygienic
– Flexible
– Multifunctional
– Small inner radius
| Belt material: | Panels: Polyacetal (white, blue, black. Rods: Stainless Steel |
| Frame material: | Mild steel or Stainless Steel |
| Frame finish: | Stainless Steel K304 or RAL color painted (option) |
| Sprocket material: | Stainless Steel |
| Available belt width: | 400 to 1400 mm |
| Turn radius: | Max. 1.3x belt width |
| Max. belt speed: | 60 m/min |
| Allowed belt tension: | 300 kg in curve / 600 kg straight |
| Drive method: | Sprockets (positive driven, both sides) |
