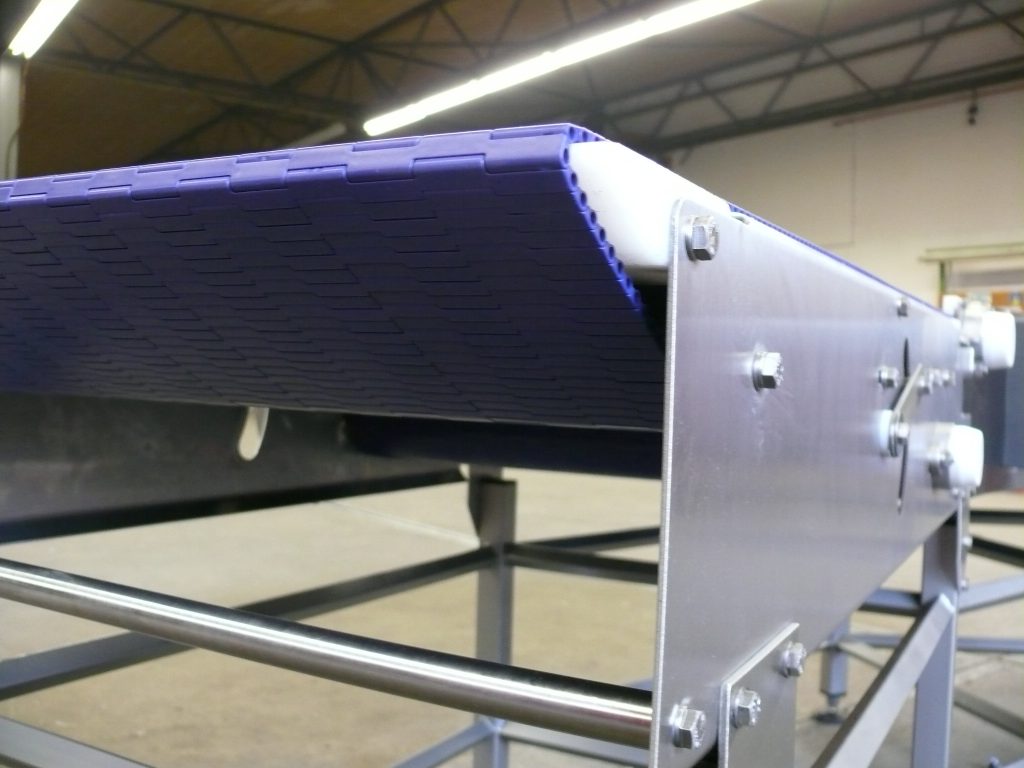

You are producing your products with care. Therefore you want a transfer system that meets your requirements. The MP Transfer (Micro Pitch belt) is designed for small and delicate products. The knife-edge makes a narrow nose-to-nose-takeover between two conveyors. This conveyor is provided with a POM acetal belt and has bearings so lubrication is not necessary. The belt design with a rounded edge of only 8mm and makes a smooth takeover possible.
– Micro Pitch POM Acetal belt
– Narrow take over
– Food suitable materials
– Stainless steel frame
– Easy to clean
– No lubrication
| Belt material | Acetal (POM) |
| Frame material | Stainless Steel |
| Frame finish | Grinded surface or brus K304 |
| Nose radius | 5 mm excl. belt 11 mm incl. belt |
| Rod material | Nylon (PA) |
| Sprocket material | Nylon (PA6) |
| Available belt width | 406, 610, 813, 1016 mm (other on request) |
| Max. belt speed | 20 m/min (higher speed on request) |
| Max. belt load | 50 kg/m belt width |
| Temperature range | 0º C to +90º C |
| Drive method | Sprockets (positive driven) |
