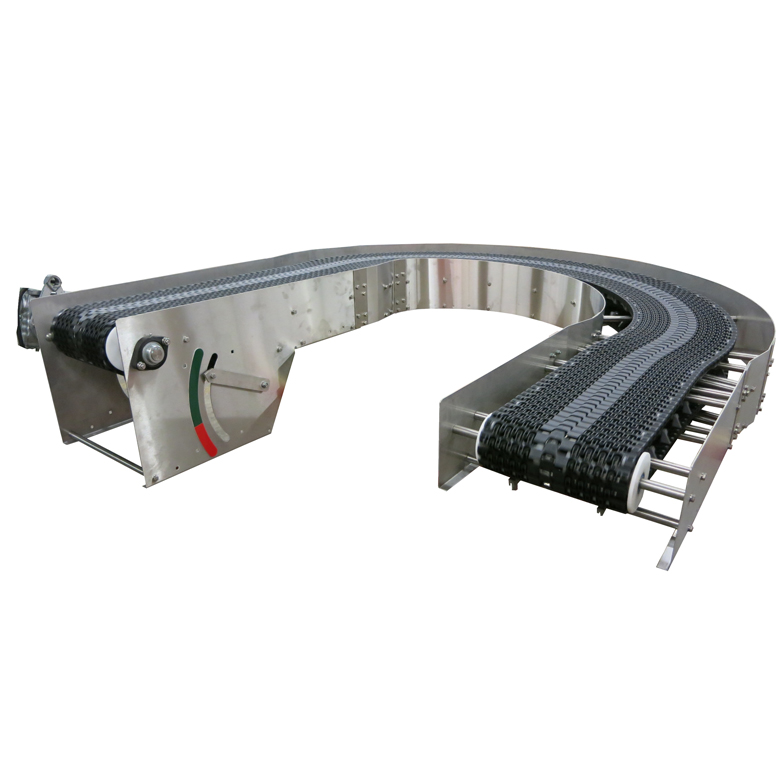

The JPHD Series has a modular setup and a wide range of in/outfeed configurations. This allows you to configure the conveyor in precisely the way you want. You can adapt the JPHD Conveyor to the layout of your production area. The JPHD Conveyor is designed for the transportation of heavy products. The solid construction and the strong hybrid belt provide a high-capacity transport. This makes the JPHD Conveyor ideal for demanding industries like beverage and breweries. In addition, JPHD Conveyor is also suitable for the logistics market.
The conveyor belt used in the JPHD Series combines plastic panels with stainless steel inserts. The JPHD Conveyor is designed for a very smooth and efficient conveying surface. The strength of the hybrid belt makes the JPHD Series suitable for all kinds of loads and dimensions.
JPHD Conveyors have a complete stainless steel construction. The conveyor belt can be cleaned easily because the frame, belt inserts, and bearings are entirely stainless steel.
JPHD Conveyors are designed for heavy-duty use: high-capacity transport of heavy product loads vertically and horizontally. The rigid construction of the conveyor and high-quality components and materials ensure a long lifetime and low maintenance costs. The JPHD Conveyor has a strong belt with stainless steel rods and a stainless steel link chain, maximizing your plant’s uptime.
Small JPHD Conveyors will be delivered in one piece, but the longer ones will be delivered in parts but can be mounted together easily. So, the installation time needed is reduced to a minimum. JPHD Conveyor is up and running in no time.
The JPHD Conveyor is center-driven by a robust stainless steel chain link. The friction coefficient is reduced to a minimum using a guide bearing in the middle of the belt.
The plastic panels of the belt are fixed over the entire width of the belt with a 6 mm stainless steel rod. This design ensures a flat belt surface and prevents belt panels from breaking out. Guide bearings at both sides prevent the flipping of the belt. This belt design reduces the risk of unexpected breakage and makes the JPHD a reliable conveyor.

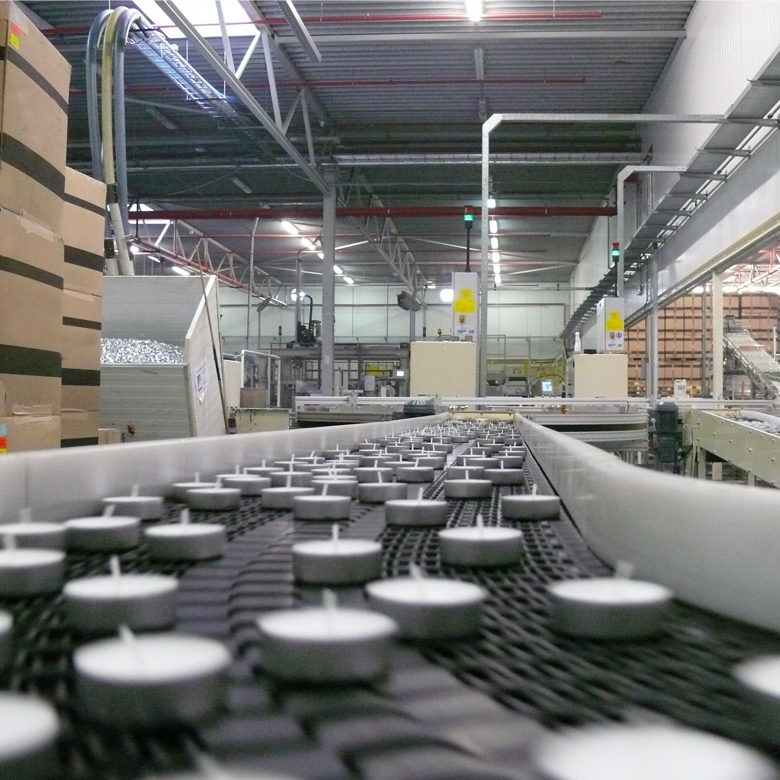

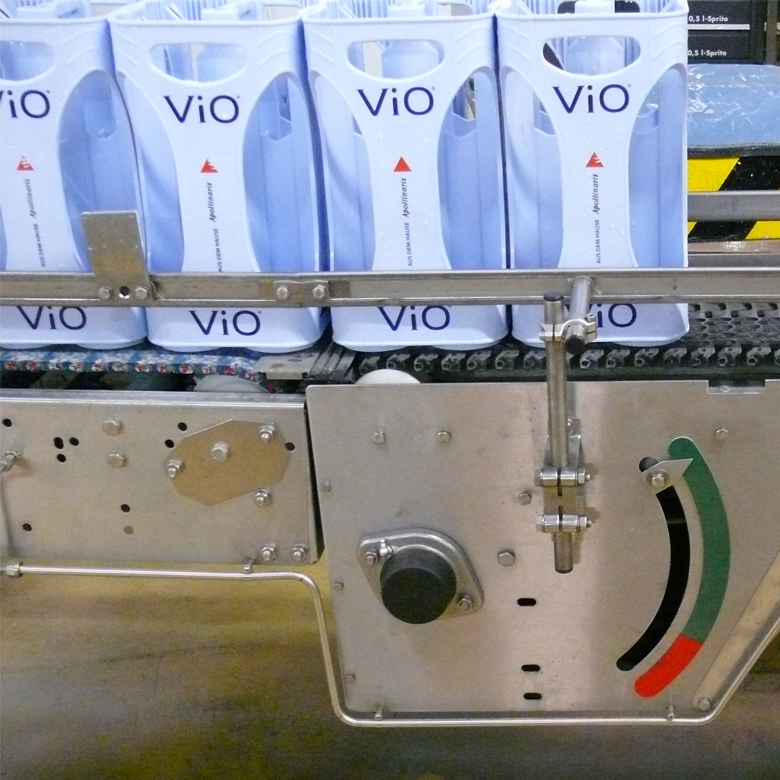

The JPHD belt panels are made of glass fiber-reinforced polyamide to prevent wear during heavy-duty use. The excellent wear resistance is perfect for transporting packed bottles and cases—friction top for conveying slick products.
JPHD Conveyors need only one drive. The drive has a robust stainless steel link chain connected to the belt.
| Belt | PA6 Glass fibre reinforced, Polyamide, Stainless-steel rods and links, Desmopan anti-slide (option) |
| Belt width | 308 mm (12”) |
| Belt pitch | 27.4 mm (1.08”) |
| Belt thickness | 19 mm |
| Rod diameter | 6 mm stainless steel |
| Inside belt radius | 500 mm |
| Outside belt radius | 808 mm |
| Guide bearing middle | Stainless steel 627-2RS (Ø 22) |
| Guide bearing outside | Stainless steel 627-2RS (Ø 22) |
| Frame material | Stainless steel or painted steel |
| Sprocket | Z = 14, Acetal (POM), Stc = 123, 13 mm |
| Max. belt speed | 35 m/min |
| Temperature range | 0 - +60 °C |
| Drive method | Sprockets (positive driven) |
